Segments

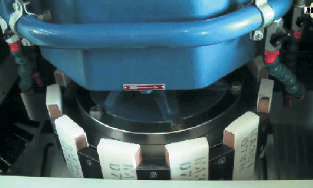

- Segments are generally used on rotary table surface grinding machines. Sterling provides wide range of all purpose shapes, sizes and specifications of segments which are composed with selected abrasives in grits. grades, structures and best bonding system to match any material removal or surface finish requirement from precision tool room grinding to uneven surface production jobs.
- Suitable for machines like Blanchard, Churchill and John Land, Lumsden, Mattison, Gusti, WMW, TOS, Camut, Snow etc.
Specification
Warning: Invalid argument supplied for foreach() in /web/qlc/sterlingabrasives.com/htdocs/wp-includes/shortcodes.php on line 591
| Material | Grading |
|---|---|
| Steel | Da36 I5 VC8 |
| Steel-Broad Contact (Hardened) | MCA36 G5 VC8 |
| Steel-Narrow Contact (Hardened) | Aa46 HVC8 |
| Steel-Tool & High speed | FS46 H VC8 |
| Die steel | AA36 H VSC |
| Stainless Steel | FSW46 G VSC |
| Cast Iron | AA30 H18 VC8, C24 H BS |
| Bronze, Brass, Ceramic | C46 J BS |
| Component | Grading |
|---|---|
| Bearing Face | AA46 G5 VC8 |
| Tool Room | AA46 K5 VC8 |
| Industrial Blade (Roughing) | A36 M5 BS |
| Industrial Blade (Finishing) | A60 J5 BS |
| Compressor Valve Plate (Roughing) | AA54 K5 BS |
| Compressor Valve Plate (Finishing) | AA150 J5 EEP |
| Connecting Rod | AA46 I5 V15 |
| Washer (Hard Steel) | AA30 G23 VSC |
Warning: Invalid argument supplied for foreach() in /web/qlc/sterlingabrasives.com/htdocs/wp-includes/shortcodes.php on line 591
| Abrasive | Diameter | Grit | Hardness | Structure |
|---|---|---|---|---|
| A, C, AA, CG, PA | As per sketch | 24 – 150 | G – M | 5 – 8 |
Warning: Invalid argument supplied for foreach() in /web/qlc/sterlingabrasives.com/htdocs/wp-includes/shortcodes.php on line 591
| 140 X 79 X 20 (with radius) |
| 150 X 80 X 25 |
| 150 X 90 X 35 |
| 152.4 X 84.14 X 38.1 (with radius) |
