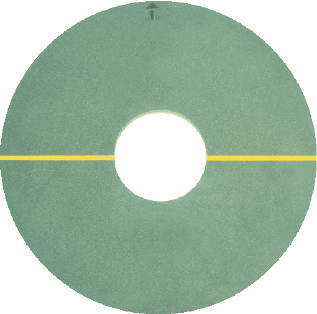

Camshaft Grinding Wheels

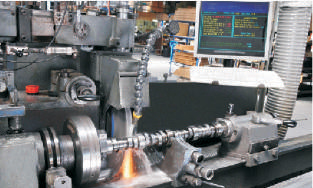

  • The camshaft or cam profile grinding process is a special form of external cylindrical plunge grinding between centres, in which the grinding wheel axis machines the cam profile in a controlled manner. As a result of the extremely high cutting volumes, requires vitrified bonded grinding wheels, particularly in grinding camshafts for the automotive sector, Conventional vitrified bonded grinding wheels are still the first choice for larger camshafts used in the truck, locomotive and marine engine sectors.
  • Suitable for machine like Landis, Naxos, Union, Fortuna, SRB, Schaudt etc.

International Range

  • Excellent form retention
  • Burn free cutting, Lower dressing frequency
  • Reduction in cycle time, Excellent surface finish

Premium Range

  • Dimension accuracy
  • Good surface finish
  • No surface crack
Application

Recommendation

Type of Material Professional Range Premium Range International Range
Cast Iron AA54 O5 V5C GC54 M5 V23 2CG54 O5 VC11
EN8, EN9, EN35, EN40B A460 M5 VC10 FSA30 P5 VC9 FS80-1 K7 V5C
      PA80-1 K7 V5C
‎Commonly Used Sizes (In mm)

Commonly Used Sizes (In mm)

400 X 50 X 127
500 X 40 X 127
600 X 25 X 304.8
600 X 40 X 304.8
750 X 25 X 304.8

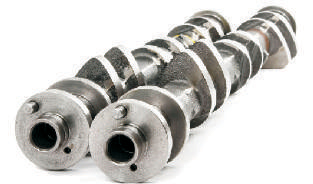

Camshaft

Application
